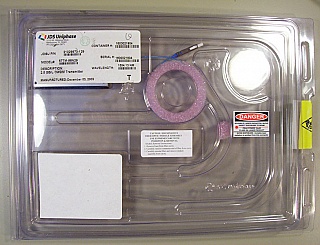

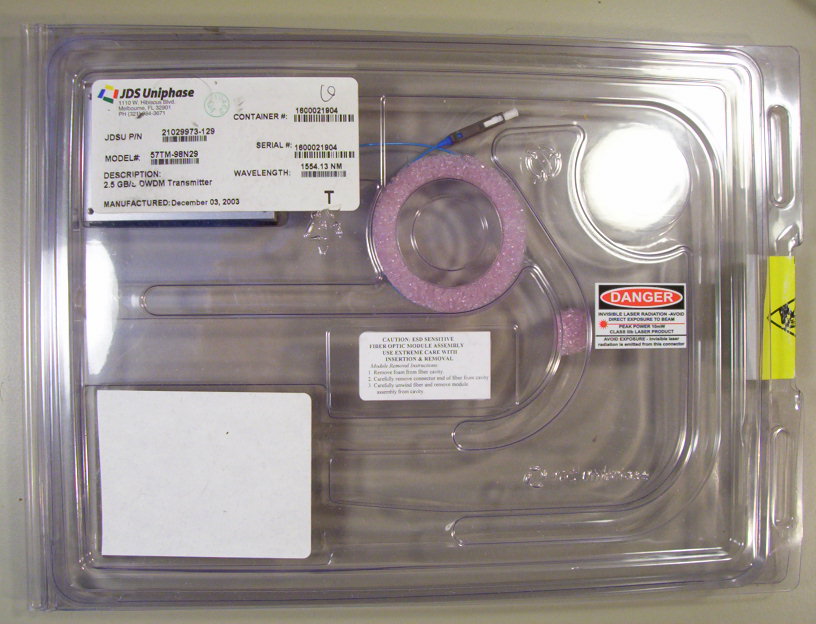

1.55um 7dBm DWDM 2.5Gb laser transmitter module. Wavelength adjustable over two 100GHz spaced channels by cahning temperature. JDS P/N: 57TM or Agere P/N: C486. Samples tested about 7dBm. Includes laser CQF413/608 or D2570 or similar

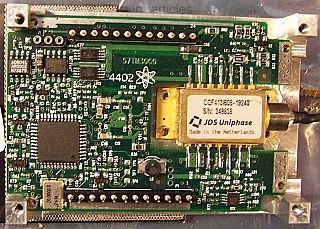

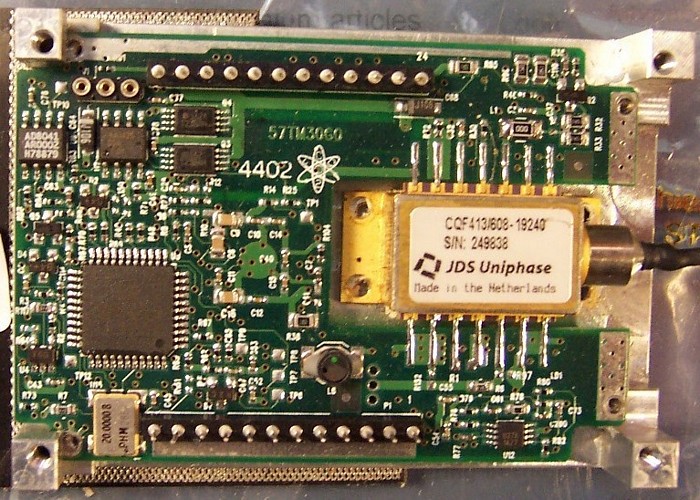

57TM transmitter: 45Mb/s to 2.7 Gb/s 100GHz DWDM transmitter. Temperature tunable over two 100GHz channels (n, n-1). Typical average power 7dBm. 3200ps/nm dispersion 180km. -15 to 80 degrees . This transmitter includes 10mW temperature tunable WDM laser module, JDS P/N: CQF413/608 (see specification at CQF413/608 ).

C486 has same features and same pinout as 57TM transmitter, and includes D2570 (see specification at D2570 ) or similar laser modules. See 57TM and C486 specification at 1st and 3rd pdf links below.

There is also 1dBm version transmitter C482, see specification at 3rd pdf link below.

Wavelengths:(This is only for google searching. Current/actual available wavelengths are less than before, all are listed in the table at the bottom of description, under “Choose wavelength and P/N”, above photos.)

Ch 19, 1562.23nm/1563.05nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 22, 1559.79nm/1560.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 24, 1558.17nm/1558.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 26, 1556.55nm/1557.36nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 27, 1555.75nm/1556.55nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 28, 1554.94nm/1555.75nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 29, 1554.13nm/1554.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 32, 1551.72nm/1552.52nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 33, 1550.92nm/1551.72nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 34, 1550.12nm/1550.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 35, 1549.32nm/1550.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 36, 1548.51nm/1549.32nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 37, 1547.72nm/1548.51nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 39, 1546.12nm/1546.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 42, 1543.73nm/1544.53nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 44, 1542.14nm/1542.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 46, 1540.56nm/1541.35nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 47, 1539.77nm/1540.56nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 48, 1538.98nm/1539.77nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 49, 1538.19nm/1538.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 50, 1537.4nm/1538.19nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 52, 1535.82nm/1536.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 54, 1534.25nm/1535.04nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 56, 1532.68nm/1533.47nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 57, 1531.9nm/1532.68nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 59, 1530.33nm/1531.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm

Ch 27, 1555.75nm/1556.55nm selectable, DWDM 1dBm DFB laser

Ch 28, 1554.94nm/1555.75nm selectable, DWDM 1dBm DFB laser

Ch 29, 1554.13nm/1554.94nm selectable, DWDM 1dBm DFB laser

Ch 31, 1552.52nm/1553.33nm selectable, DWDM 1dBm DFB laser

Ch 35, 1549.32nm/1550.12nm selectable, DWDM 1dBm DFB laser

Ch 36, 1548.51nm/1549.32nm selectable, DWDM 1dBm DFB laser

Ch 44, 1542.14nm/1542.94nm selectable, DWDM 1dBm DFB laser

Ch 56, 1532.68nm/1533.47nm selectable, DWDM 1dBm DFB laser

Ch 58, 1531.12nm/1531.9nm selectable, DWDM 1dBm DFB laser

Store Part No.	Choose wavelength	Qty	Price	Buy
OMS-Tx-1550-067C19	Ch 19, 1562.23nm/1563.05nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	54	US$360.00	+ -
OMS-Tx-1550-067C22	Ch 22, 1559.79nm/1560.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	52	US$360.00	+ -
OMS-Tx-1550-067C24	Ch 24, 1558.17nm/1558.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	22	US$360.00	+ -
OMS-Tx-1550-067CA	Ch 26, 1556.55nm/1557.36nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$370.00	+ -
OMS-Tx-1550-067C27	Ch 27, 1555.75nm/1556.55nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	14	US$365.00	+ -
OMS-Tx-1550-067C0	Ch 28, 1554.94nm/1555.75nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$380.00	+ -
OMS-Tx-1550-067C291	Ch 29, 1554.13nm/1554.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	30	US$375.00	+ -
OMS-Tx-1550-067C321	Ch 32, 1551.72nm/1552.52nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	4	US$400.00	+ -
OMS-Tx-1550-067C331	Ch 33, 1550.92nm/1551.72nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$410.00	+ -
OMS-Tx-1550-067C341	Ch 34, 1550.12nm/1550.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	10	US$420.00	+ -
OMS-Tx-1550-067C351	Ch 35, 1549.32nm/1550.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	2	US$410.00	+ -
OMS-Tx-1550-067C361	Ch 36, 1548.51nm/1549.32nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$400.00	+ -
OMS-Tx-1550-067C371	Ch 37, 1547.72nm/1548.51nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	15	US$390.00	+ -
OMS-Tx-1550-067C391	Ch 39, 1546.12nm/1546.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$370.00	+ -
OMS-Tx-1550-067C401	Ch 42, 1543.73nm/1544.53nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	11	US$360.00	+ -
OMS-Tx-1550-067C441	Ch 44, 1542.14nm/1542.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	5	US$360.00	+ -
OMS-Tx-1550-067C461	Ch 46, 1540.56nm/1541.35nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$360.00	+ -
OMS-Tx-1550-067C471	Ch 47, 1539.77nm/1540.56nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	10	US$360.00	+ -
OMS-Tx-1550-067C481	Ch 48, 1538.98nm/1539.77nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$360.00	+ -
OMS-Tx-1550-067C491	Ch 49, 1538.19nm/1538.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	14	US$360.00	+ -
OMS-Tx-1550-067C501	Ch 50, 1537.4nm/1538.19nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	1	US$360.00	+ -
OMS-Tx-1550-067C521	Ch 52, 1535.82nm/1536.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	6	US$360.00	+ -
OMS-Tx-1550-067C541	Ch 54, 1534.25nm/1535.04nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	5	US$360.00	+ -
OMS-Tx-1550-067C561	Ch 56, 1532.68nm/1533.47nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	3	US$360.00	+ -
OMS-Tx-1550-067C571	Ch 57, 1531.9nm/1532.68nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	27	US$360.00	+ -
OMS-Tx-1550-067C591	Ch 59, 1530.33nm/1531.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm	43	US$360.00	+ -
OMS-Tx-1550-067C27Y1	Ch 27, 1555.75nm/1556.55nm selectable, DWDM 1dBm DFB laser	11	US$270.00	+ -
OMS-Tx-1550-067C28Y1	Ch 28, 1554.94nm/1555.75nm selectable, DWDM 1dBm DFB laser	2	US$275.00	+ -
OMS-Tx-1550-067C29Y1	Ch 29, 1554.13nm/1554.94nm selectable, DWDM 1dBm DFB laser	25	US$277.00	+ -
OMS-Tx-1550-067C31Y1	Ch 31, 1552.52nm/1553.33nm selectable, DWDM 1dBm DFB laser	26	US$285.00	+ -
OMS-Tx-1550-067C35Y1	Ch 35, 1549.32nm/1550.12nm selectable, DWDM 1dBm DFB laser	38	US$295.00	+ -
OMS-Tx-1550-067C36Y1	Ch 36, 1548.51nm/1549.32nm selectable, DWDM 1dBm DFB laser	2	US$285.00	+ -
OMS-Tx-1550-067C44Y1	Ch 44, 1542.14nm/1542.94nm selectable, DWDM 1dBm DFB laser	1	US$260.00	+ -
OMS-Tx-1550-067C56Y1	Ch 56, 1532.68nm/1533.47nm selectable, DWDM 1dBm DFB laser	1	US$260.00	+ -
OMS-Tx-1550-067C58Y1	Ch 58, 1531.12nm/1531.9nm selectable, DWDM 1dBm DFB laser	12	US$260.00	+ -

Choose wavelength
Ch 60, 1529.55nm/1530.33nm selectable, DWDM 1dBm DFB laser, Ch 58, 1531.12nm/1531.9nm selectable, DWDM 1dBm DFB laser, Ch 56, 1532.68nm/1533.47nm selectable, DWDM 1dBm DFB laser, Ch 44, 1542.14nm/1542.94nm selectable, DWDM 1dBm DFB laser, Ch 36, 1548.51nm/1549.32nm selectable, DWDM 1dBm DFB laser, Ch 35, 1549.32nm/1550.12nm selectable, DWDM 1dBm DFB laser, Ch 31, 1552.52nm/1553.33nm selectable, DWDM 1dBm DFB laser, Ch 29, 1554.13nm/1554.94nm selectable, DWDM 1dBm DFB laser, Ch 28, 1554.94nm/1555.75nm selectable, DWDM 1dBm DFB laser, Ch 27, 1555.75nm/1556.55nm selectable, DWDM 1dBm DFB laser, Ch 59, 1530.33nm/1531.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 57, 1531.9nm/1532.68nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 56, 1532.68nm/1533.47nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 54, 1534.25nm/1535.04nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 52, 1535.82nm/1536.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 50, 1537.4nm/1538.19nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 49, 1538.19nm/1538.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 48, 1538.98nm/1539.77nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 47, 1539.77nm/1540.56nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 46, 1540.56nm/1541.35nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 44, 1542.14nm/1542.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 42, 1543.73nm/1544.53nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 39, 1546.12nm/1546.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 37, 1547.72nm/1548.51nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 36, 1548.51nm/1549.32nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 35, 1549.32nm/1550.12nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 34, 1550.12nm/1550.92nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 33, 1550.92nm/1551.72nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 32, 1551.72nm/1552.52nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 29, 1554.13nm/1554.94nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 28, 1554.94nm/1555.75nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 27, 1555.75nm/1556.55nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 26, 1556.55nm/1557.36nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 24, 1558.17nm/1558.98nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 22, 1559.79nm/1560.61nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm, Ch 19, 1562.23nm/1563.05nm selectable, DWDM 7dBm DFB laser, Type A, λ accuracy ≤0.130nm
