10 Gb/s Surface-Mount APD-TIA Receiverr, Agere model: RA194W
Next image
Zoom image

10 Gb/s Surface-Mount APD-TIA Receiverr, Agere model: RA194W


Not rated yet

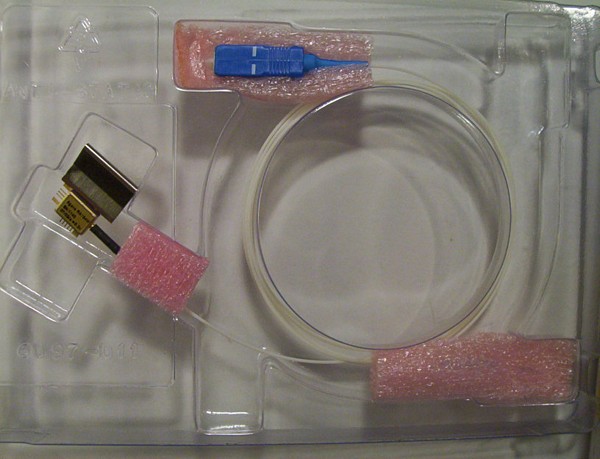

10Gb APD/Preamp receiver. -26dBm sensitivity.  With SC/PC fiber connector.

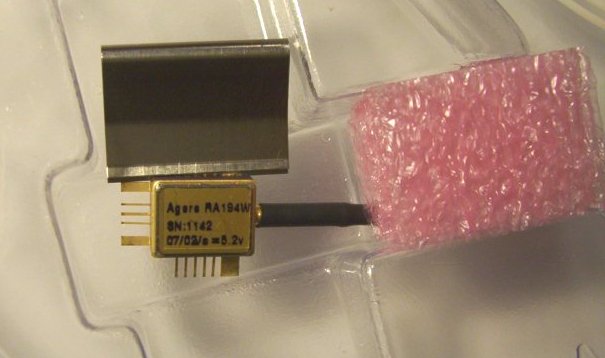

The RA194W receiver integrates a 10 Gb/s APD and TIA into a true surface-mount package. It is part of the industry’s first and only multisource agreement (MSA) to standardize surface-mount 10 Gb/s receivers. These compact receivers can be mounted directly to a printed circuit board, thus avoiding the space, routing, and EMI problems of a mechanical cut-out. The output voltages are ac coupled internal to the module package.


Features
__10.7 Gb/s capability
__-26 dBm typical sensitivity
__-2 dBm typical overload
__2400 OHM typ. differential gain
__Flat group delay
__Telcordia TechnologiesTM 468 compliant
__Very small, surface-mount form factor

In stock (Only 3 left in stock)
  • US$375.00
Qty:
Add a different product to compare
    CONDITION:

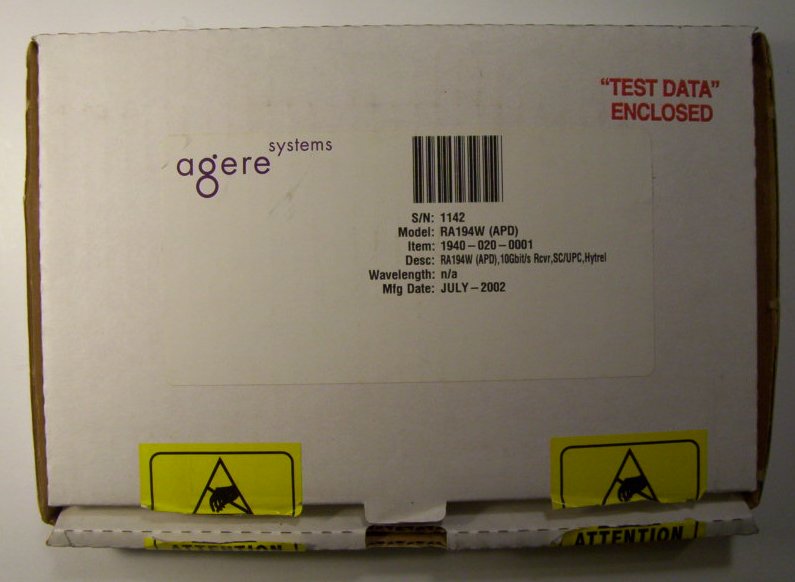

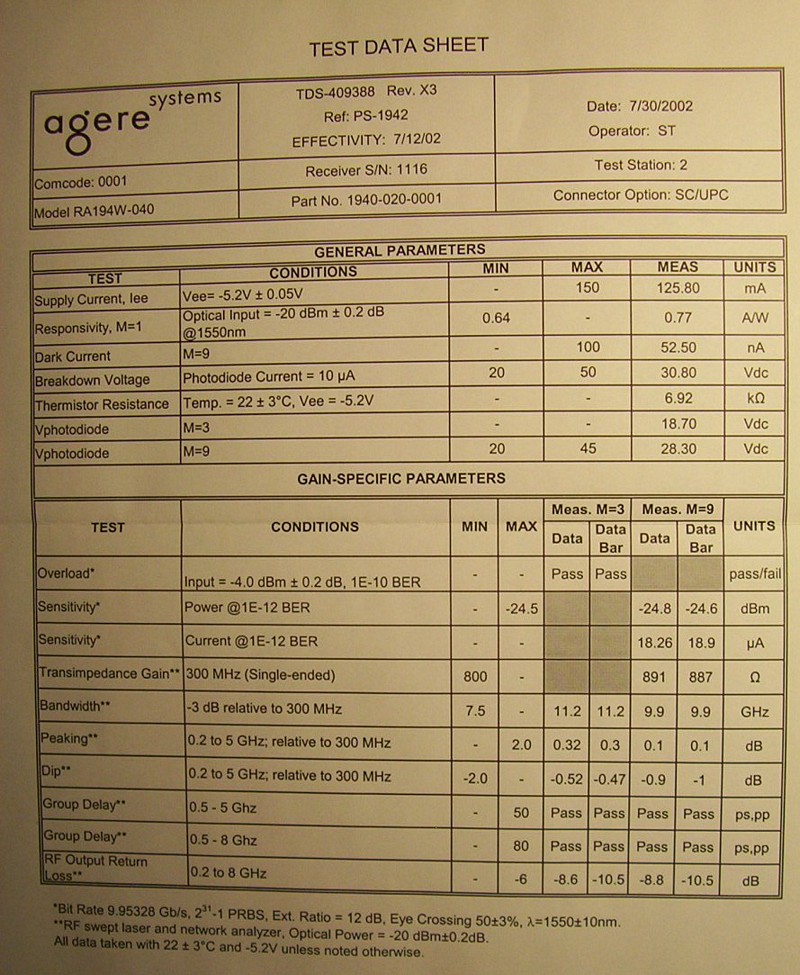

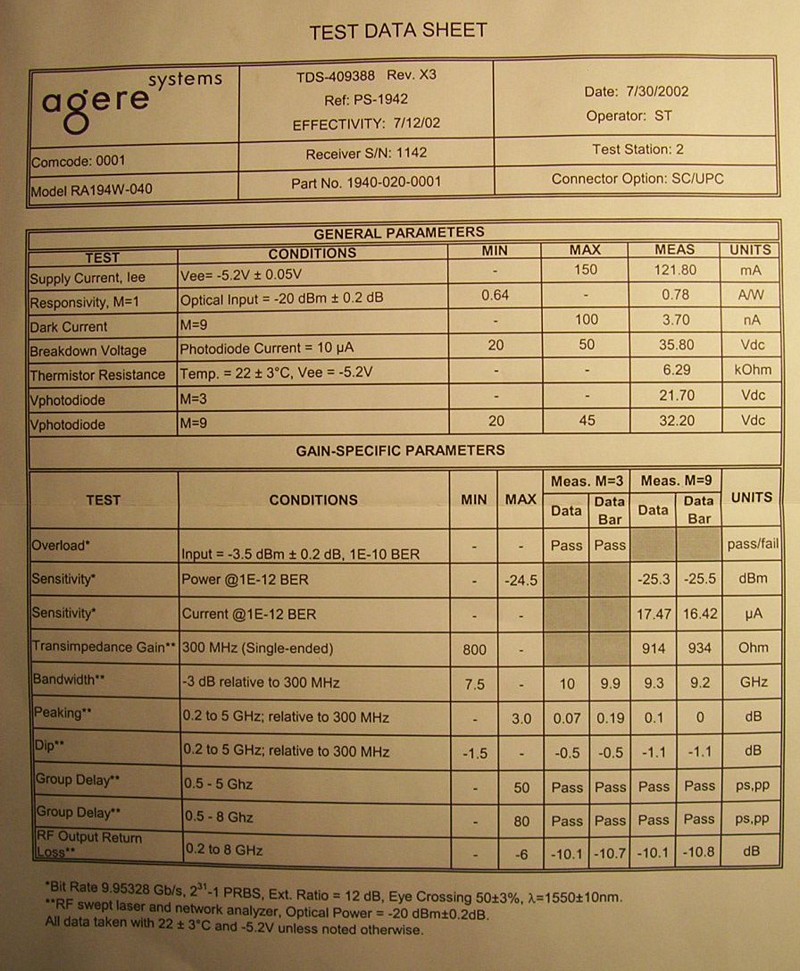

    new in original product pack, with actual test sheet.


  • DIM Weight
    0.4000 kg
  • Store Part No.
    ODC-Rx-10Gb-031C
  • Manufacturers
    • Manufacturer
      Agere
