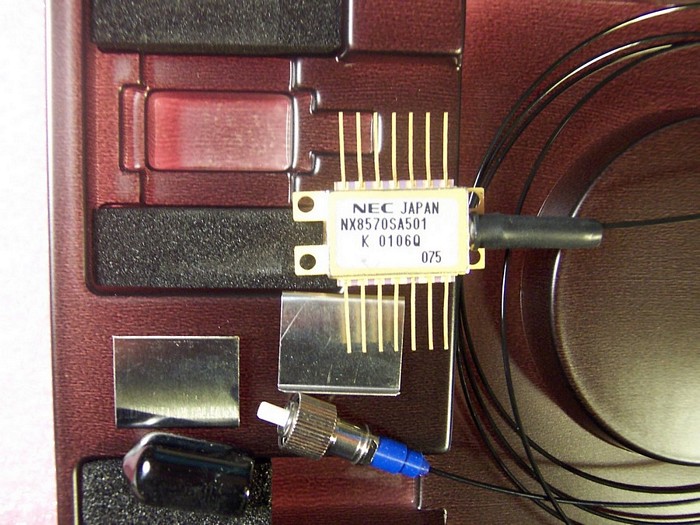

1.55um 20mW DWDM laser module, NEC P/N: NX8570SAxxx-47. With integrated wavelength monitor and etalon filter. With FC/PC fiber connector. Matured products. Non-standard pinout.
Next image
Zoom image

1.55um 20mW DWDM laser module, NEC P/N: NX8570SAxxx-47. With integrated wavelength monitor and etalon filter. With FC/PC fiber connector. Matured products. Non-standard pinout.


Not rated yet

See specification at 1st pdf link below. There is wavelength monitor function. With FC/PC fiber connector.

Pinout is not standard type-2. Only difference is: The laser anode and laser cathode are at different pins from standard type-2. TEC, thermistor, and power monitor pinout are same as standard type-2.

Lot no: 0106Q, 0108Q, or 0104Q, which means products were made in Feb. or Jan. 2001.

DESCRIPTION
The NX8570SA is a 1 550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode module with wavelength monitor function. This device is designed as CW light source and ideal for transmission systems in which external modulators are used.

FEATURES
• Wavelength monitor function (Etalon Filter, Wavelength monitor PD)
• Output power Pf = 20 mW MIN.
• Available for DWDM wavelengths based on ITU-T recommendations (100 GHz grid, refer to ORDERING INFORMATION)
• Internal thermo-electric cooler and isolator • Hermetically sealed 14-pin butterfly package
• Polarization maintain fiber pigtail

Wavelength and P/N: 1547.71nm, NX8570SA477-47 1549.31nm, NX8570SA493-47 1550.11nm, NX8570SA501-47 1550.91nm, NX8570SA509-47 1555.74nm, NX8570SA557-47 1557.36nm, NX8570SA573-47

Store Part No. Choose wavelength Qty Price Buy
OSC-LDPM-C-617C0 1547.71nm, NX8570SA477-47 47 US$340.00 + -
OSC-LDPM-C-617C1 1549.31nm, NX8570SA493-47 27 US$350.00 + -
OSC-LDPM-C-617C2 1550.11nm, NX8570SA501-47 24 US$360.00 + -
OSC-LDPM-C-617C3 1550.91nm, NX8570SA509-47 29 US$350.00 + -
OSC-LDPM-C-617C4 1555.74nm, NX8570SA557-47 12 US$330.00 + -
OSC-LDPM-C-617C5 1557.36nm, NX8570SA573-47 2 US$330.00 + -
Add a different product to compare
    CONDITION:

    new in original product pack, with manufacture test data, see last 5 pdf links above. With Newport laser controller, we have tested 8 samples at our lab, all meet specification 20mW (at <167mA) and wavelength specification well, our tested output power and wavelength data (see last 7 photos) are very close to manufacture test data, and actual wavelength can be adjusted to set wavelength within 20 C and 35 C temperature.


  • DIM Weight
    0.3000 kg
  • Store Part No.
    OSC-LDPM-C-617C4
  • Choose wavelength
    1557.36nm, NX8570SA573-47, 1555.74nm, NX8570SA557-47, 1550.91nm, NX8570SA509-47, 1550.11nm, NX8570SA501-47, 1549.31nm, NX8570SA493-47, 1547.71nm, NX8570SA477-47, 1546.11nm, NX8570SA461-47
  • Manufacturers
    • Manufacturer
      NEC
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
