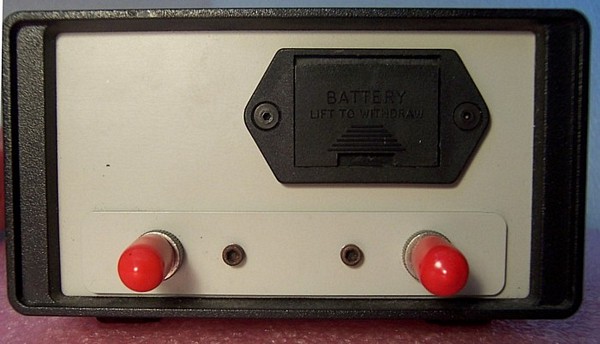

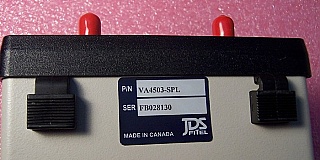

1300nm/1550nm Manual Variable attenuator, with 2 ST optical adapters. JDS VA4 series. JDS P/N: VA4503-SPL

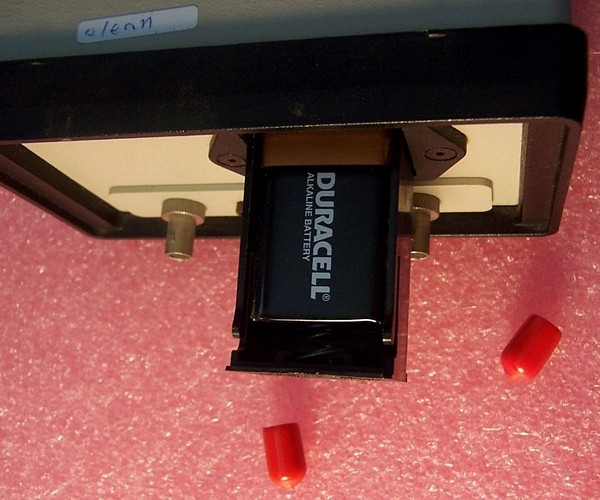

See photos for actual equipment. With 9V battery.

Key Features & Benefits
• Precision attenuation
• Two calibration wavelengths
• Low insertion loss
• Return loss > 60 dB
• Very long battery life
• Portable for field use
• Optional universal connector adapter

Applications
• Optical power control
• Receiver testing
• Field system testing
• Power meter linearity checks

PDF datasheet 20.7 kB
HTML datasheet 20.7 kB

CONDITION:

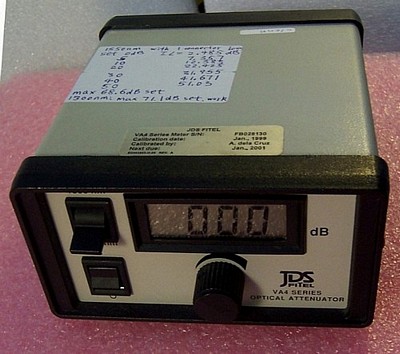

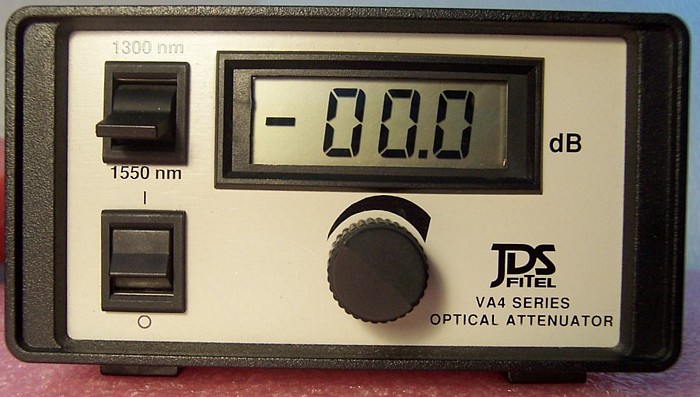

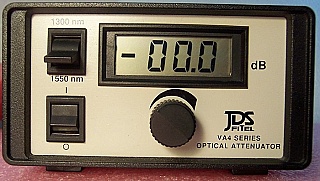

Good cosmetic condition. LCD display is very clear. Internal fiber connectors are clear under fiber scope.

Variable attenuator is verified working very well at our lab.

At 1550nm with SM fiber jumpers, we tested insertion loss (including one-connector loss) with HP 81525A optical head:
Set 0dB, IL=2.485dB. (This is minimum loss)
Set 5dB, IL=7.357dB.
Set 10dB, IL=12.383dB.
Set 20dB, IL=22.425dB.
Set 30dB, IL=31.955dB.
Set 40dB, IL=41.671dB.
Set 50dB, IL=51.03dB (accuracy is limited by optical head).

DIM Weight

0.8700 kg

Store Part No.

OTI-VOA-SM-010D

Manufacturers
- Manufacturer
  jds
