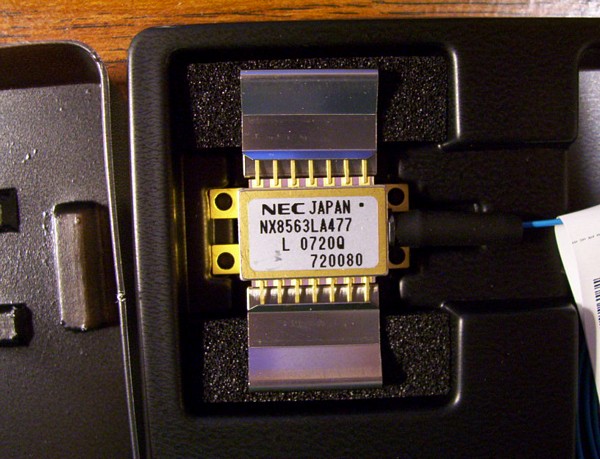

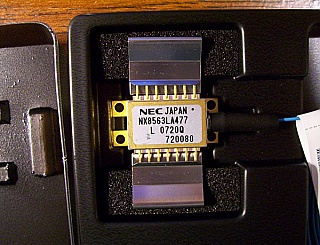

1531.8nm or 1535.0 10mW 14-pin butterfly laser for CATV and DWDM. P/N: NX8563LAxxx-88E.

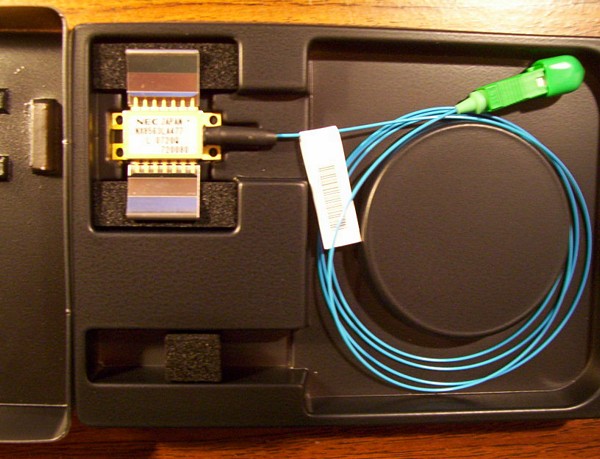

NEC P/N: NX8563LA. Pf=10mW. For direct modulation. SC/APC PMF connector. The datasheet in the pdf link below is focus on DWDM application, but it can be also for CATV. From http://www.cel.com/prod/prod_laser.asp , this laser model is described as "NEC's Direct Modulated InGaAsP MQW DFB Laser Diode Module for 2.5Gb/s 110km and 240km Reach DWDM Metro and CATV Applications ". See txt link below for more info for CATV application. Available qty at specific wavelength on July 23, 2009: 1547.7nm NX8563LA477-88E qty=3PC, 1555.7nm NX8563LA557-88E qty=3PC, 1531.8nm NX8563LA318-88E qty=6PC, 1535.0nm NX8563LA350-88C qty=1PC, 1542.1nm NX8563LB421BA qty=2 PCS.

PDF datasheet 18.2 kB
Other info in PDF 18.2 kB
TEXT file 18.2 kB
ZIP file 18.2 kB

Choose wavelength and P/N
1555.7nm NX8563LA557-88E, 1535.0nm NX8563LA350-88C, 1531.8nm NX8563LA318-88E
Manufacturers
- Manufacturer
  NEC
