2 x 10Gb modulator. with 4 FC/PC fiber connectors. Lucent model: 2646NAT. 'Sell As Is'.
Next image
Zoom image

2 x 10Gb modulator. with 4 FC/PC fiber connectors. Lucent model: 2646NAT. 'Sell As Is'.


Not rated yet

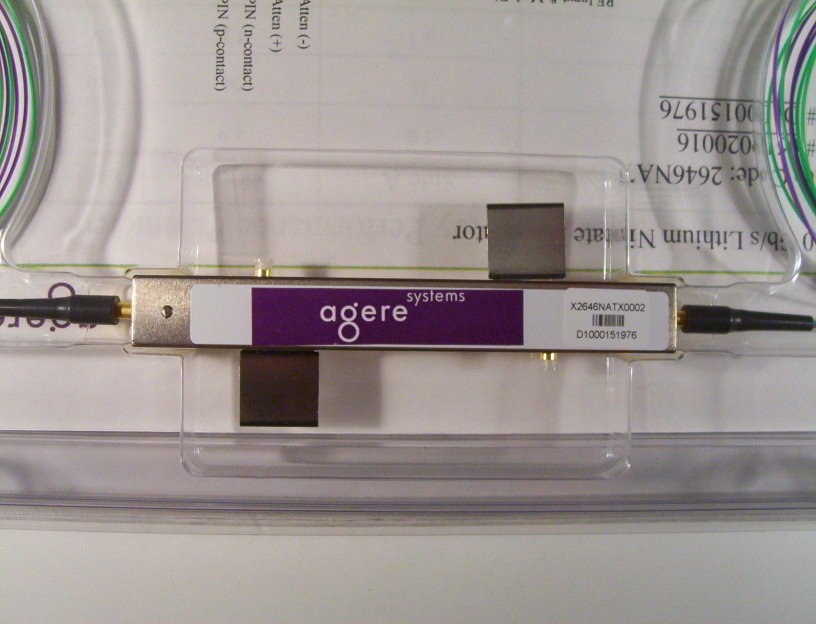

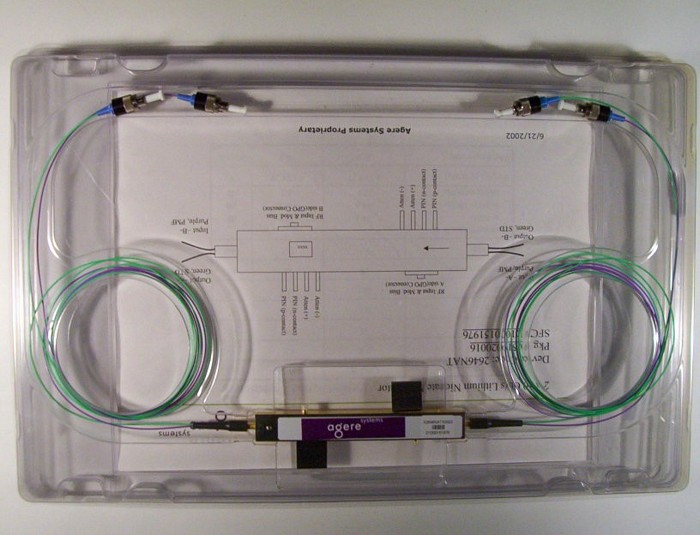

This device includes two 10Gb modulators. It comes with 4 FC/PC fiber connectors. The two purple fibers are PMF inputs. The two green fiber are SMF outputs.

Electrical interface: Two GPO RF connectors; Dual four-pins to control attenuation and monitor optical power. With GPO/SMP male interface. You can use GPO(SMP)-female to SMA-female adapter (Store part #: EIP-RFADAPTERS-017D) to convert to SMA interface. SMA can work up to 18GHz.

Specification should be almost same as the 1st pdf link below. Difference between "CS" and "N" in model numbers 2623N/2623CS is only bandwidth. So we believe only bandwidth specification is slightly different between 2646CSAT and 2646NAT.

Out of stock
  • US$410.00
Add a different product to compare
    CONDITION:

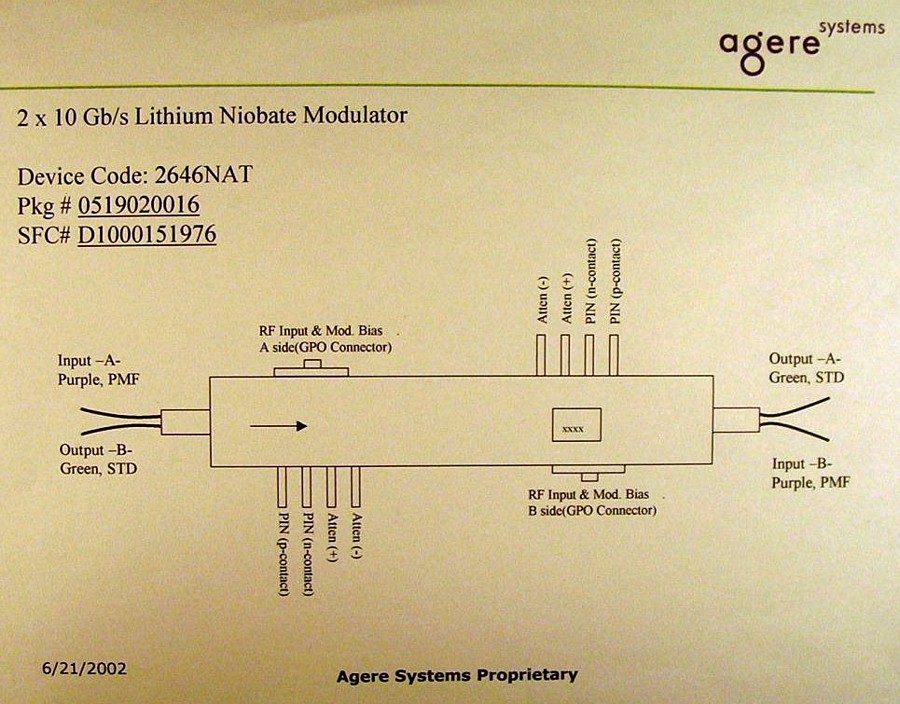

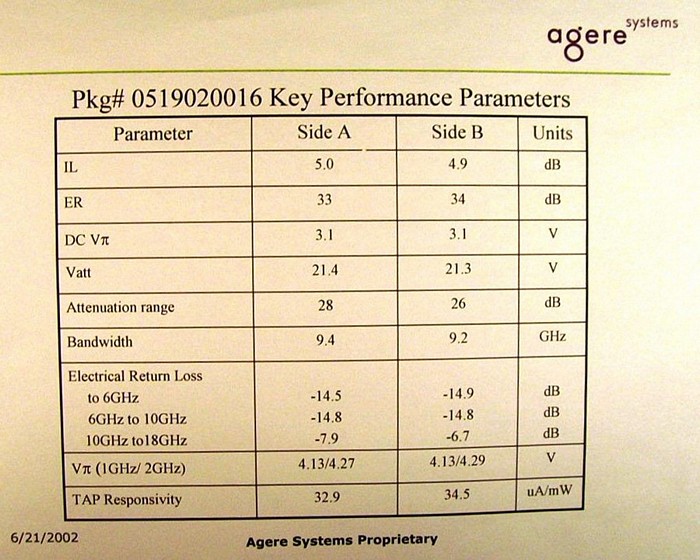

    unused in original product pack. With manufacture test data, see last two photos. Verified passing red light from input to output fiber ends at our lab. "Sell As Is". You can try and return, but two-way shipping fee is not refundable.


  • DIM Weight
    2.0000 kg
  • Store Part No.
    OSC-MOD-10Gb-011P
  • Manufacturers
    • Manufacturer
      Agere
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
