91pc 1.55um 20mW DWDM laser module, NEC P/N: NX8570SAxxx-47. With integrated wavelength monitor & etalon filter. FC/PC connector. There is product label 'Design Sample' on each case. Non-standard pinout. We will test & verify laser wavelength before ship
Next image
Zoom image

91pc 1.55um 20mW DWDM laser module, NEC P/N: NX8570SAxxx-47. With integrated wavelength monitor & etalon filter. FC/PC connector. There is product label 'Design Sample' on each case. Non-standard pinout. We will test & verify laser wavelength before ship


Not rated yet

See specification at 1st pdf link below. There is wavelength monitor function. With FC/PC fiber connector.

Pinout is not standard type-2. Only difference is: The laser anode and laser cathode are at different pins from standard type-2. TEC, thermistor, and power monitor pinout are same as standard type-2.

Lot no: 0038Q, 0032Q, or 0040Q, which means products were made in July-Septemper 2000.

DESCRIPTION
The NX8570SA is a 1 550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode module with wavelength monitor function. This device is designed as CW light source and ideal for transmission systems in which external modulators are used.

FEATURES
• Wavelength monitor function (Etalon Filter, Wavelength monitor PD)
• Output power Pf = 20 mW MIN.
• Available for DWDM wavelengths based on ITU-T recommendations (100 GHz grid, refer to ORDERING INFORMATION)
• Internal thermo-electric cooler and isolator
• Hermetically sealed 14-pin butterfly package
• Polarization maintain fiber pigtail

Product options
1546.11nm, NX8570SA461-47 1547.71nm, NX8570SA477-47 1549.31nm, NX8570SA493-47 1550.11nm, NX8570SA501-47 1550.91nm, NX8570SA509-47 1557.36nm, NX8570SA573-47

Store Part No. Choose wavelength Qty Price Buy
OSC-LDPM-C-617DA 1546.11nm, NX8570SA461-47 1 US$295.00 + -
OSC-LDPM-C-617D0 1547.71nm, NX8570SA477-47 34 US$315.00 + -
OSC-LDPM-C-617D1 1549.31nm, NX8570SA493-47 22 US$325.00 + -
OSC-LDPM-C-617D2 1550.11nm, NX8570SA501-47 4 US$335.00 + -
OSC-LDPM-C-617D3 1550.91nm, NX8570SA509-47 25 US$325.00 + -
OSC-LDPM-C-617D28 Actual tested wavelength is 1550.692nm at 25 C at our lab, 1550.1nm at 20C, NX8570SA501-47 2 US$310.00 + -
OSC-LDPM-C-617D30 Actual tested wavelength is 1551.316nm at 25 C at our lab, NX8570SA501-47 1 US$295.00 + -
OSC-LDPM-C-617D32 Actual tested wavelength is 1556.282nm at 25 C at our lab, 1555.74nm at 20.41 C, NX8570SA557-47 1 US$285.00 + -
OSC-LDPM-C-617D34 Actual tested wavelength is 1556.641nm at 25 C at our lab, NX8570SA557-47 1 US$285.00 + -
Add a different product to compare
    CONDITION:

    new in original product pack, with manufacture test data, see last 4 pdf links above.

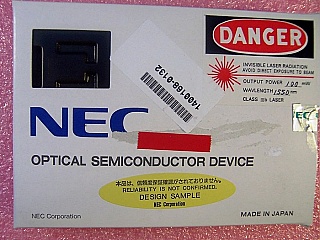

    There is product label 'Reliability is not confirmed, Design Sample, NEC Corporation' on each case, see 3rd photo .

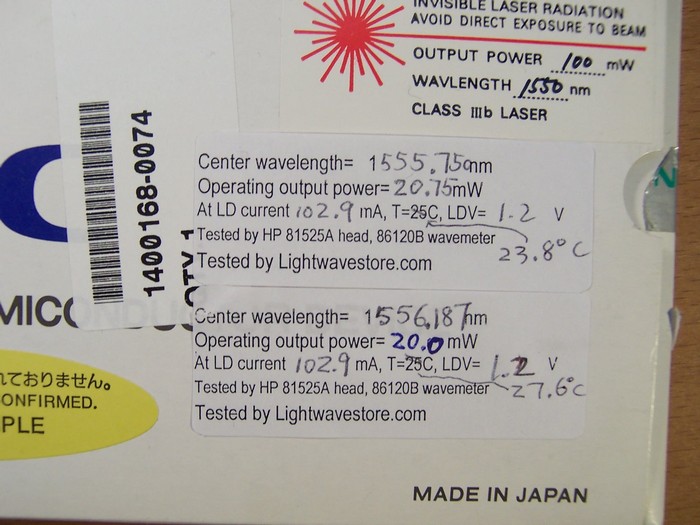

    With Newport laser controller, we have tested 13 samples at our lab, our tested output power (see last 2 photo2 ) all meet specification 20mW (at <167mA) specification well. Wavelength of near 25% samples may be a little bit away from specification, so we will test and verify each laser wavelength is reasonable (deviation from set wavelength is <0.4nm at 25 C degree temperature, i.e., actual wavelength can be adjusted to set wavelength within 20 C and 35 C temperature) before shipping.



  • DIM Weight
    0.3000 kg
  • Store Part No.
    OSC-LDPM-C-617DA
  • Choose wavelength
    Actual tested wavelength is 1556.641nm at 25 C at our lab, NX8570SA557-47, Actual tested wavelength is 1556.282nm at 25 C at our lab, 1555.74nm at 20.41 C, NX8570SA557-47, Actual tested wavelength is 1551.316nm at 25 C at our lab, NX8570SA501-47, Actual tested wavelength is 1550.692nm at 25 C at our lab, 1550.1nm at 20C, NX8570SA501-47, 1555.74nm, NX8570SA557-47, 1550.91nm, NX8570SA509-47, 1550.11nm, NX8570SA501-47, 1549.31nm, NX8570SA493-47, 1547.71nm, NX8570SA477-47, 1546.11nm, NX8570SA461-47
  • Manufacturers
    • Manufacturer
      NEC
