Dual Add/Drop modules. Add and drop wavelength is 1554.94nm. ECI TELECOM LTD model: D1ADM, P/N: BP1A36AA-07-E, with Oplink P/N: DWDMG01C28BTI12 or DWDMG01CxxBTI12
Next image
Zoom image

Dual Add/Drop modules. Add and drop wavelength is 1554.94nm. ECI TELECOM LTD model: D1ADM, P/N: BP1A36AA-07-E, with Oplink P/N: DWDMG01C28BTI12 or DWDMG01CxxBTI12


Not rated yet

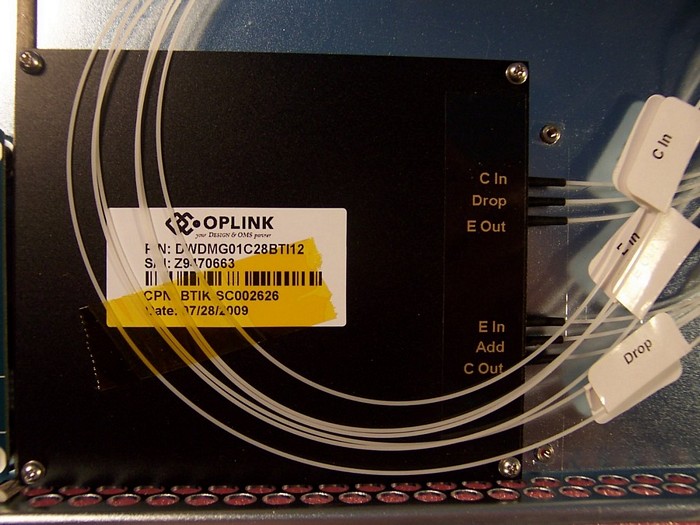

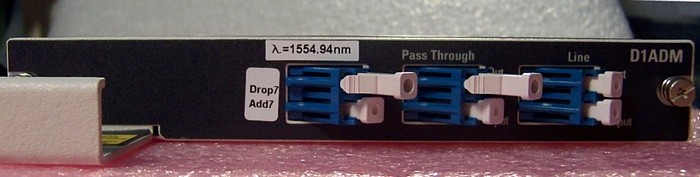

"One channel DWDM OADM, Band 7, Channel 7 (1554.94nm) (ECI)" is marked on product bag of one system sample. We opened this system, there is an optical module of Oplink P/N: DWDMG01C28BTI12. We checked its passband spectrum by Optical Spectrum Analyzer very approximately, the bandwidth is about 0.8nm at -12dB with flat passband, so we very believe it is for 100GHz-spaced DWDM. Based on our test, we found it is actually two OADM modules. One optical add module includes "pass through Input", "Line Output", and "Add" ports. One optical drop module includes "Pass through Out", "Line Input", and "Drop" parts. "Pass through Out", and "Drop" ports are covered with LC terminals. With 6 LC/PC adapters at front panel. See ITU grid definition in the pdf link below. Oplink P/N: DWDMG01C28BTI12 module is all-optical passive.

There are other products with different wavelengths. Product options:
Add and drop wavelength 1554.94nm. ECI TELECOM P/N: BP1A36AA-07-E. "One channel DWDM OADM, Band 7, Channel 7 (1554.94nm) (ECI)"
Add and drop wavelength 1558.17nm. ECI TELECOM P/N: BP1A36AA-03-E. "One channel DWDM OADM, Band 1, Channel 3 (1558.17nm) (ECI)"
Add and drop wavelength 1546.92nm. ECI TELECOM P/N: BP1A36AA-15-E. "One channel DWDM OADM, Channel 15"
Add and drop wavelength 1546.12nm. ECI TELECOM P/N: BP1A36AA-16-E. "One channel DWDM OADM, Channel 16"
Add and drop wavelength 1557.36nm. ECI TELECOM P/N: BP1A36AA-04-E. "1 channel DWDM OADM, band 1, Channel 4 (1557.36nm)(ECI) "
Add and drop wavelength 1558.98nm. ECI TELECOM P/N: BP1A36AA-02-E. "1 channel DWDM OADM, band 1, Channel 2 (1558.98nm)(ECI) "
Add and drop wavelength 1547.72nm. ECI TELECOM P/N: BP1A36AA-14-E. "1 channel DWDM OADM, Channel 14 "

Store Part No. Choose product Qty Price Buy
FFC-MUX-071C0 Add and drop wavelength 1554.94nm. ECI TELECOM P/N: BP1A36AA-07-E. "One channel DWDM OADM, Band 7, Channel 7 (1554.94nm) (ECI)" 1 US$35.00 + -
FFC-MUX-071C1 Add and drop wavelength 1558.17nm. ECI TELECOM P/N: BP1A36AA-03-E. "One channel DWDM OADM, Band 1, Channel 3 (1558.17nm) (ECI)" 2 US$30.00 + -
FFC-MUX-071C2 Add and drop wavelength 1546.92nm. ECI TELECOM P/N: BP1A36AA-15-E. "One channel DWDM OADM, Channel 15" 0 US$33.00 Out of stock
FFC-MUX-071C3 Add and drop wavelength 1546.12nm. ECI TELECOM P/N: BP1A36AA-16-E. "One channel DWDM OADM, Channel 16" 2 US$30.00 + -
FFC-MUX-071C4 Add and drop wavelength 1557.36nm. ECI TELECOM P/N: BP1A36AA-04-E. "1 channel DWDM OADM, band 1, Channel 4 (1557.36nm)(ECI) " 0 US$35.00 Out of stock
FFC-MUX-071C5 Add and drop wavelength 1558.98nm. ECI TELECOM P/N: BP1A36AA-02-E. "1 channel DWDM OADM, band 1, Channel 2 (1558.98nm)(ECI) " 3 US$30.00 + -
FFC-MUX-071C6 Add and drop wavelength 1547.72nm. ECI TELECOM P/N: BP1A36AA-14-E. "1 channel DWDM OADM, Channel 14 " 3 US$35.00 + -
Add a different product to compare
    CONDITION:

    new in original product pack. We opened one system to see what inside. "Sell As Is". Two-way shipping fee is not refundable if your return them.


  • DIM Weight
    1.4000 kg
  • Store Part No.
    FFC-MUX-071C0
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose product
    Add and drop wavelength 1547.72nm. ECI TELECOM P/N: BP1A36AA-14-E. "1 channel DWDM OADM, Channel 14 ", Add and drop wavelength 1558.98nm. ECI TELECOM P/N: BP1A36AA-02-E. "1 channel DWDM OADM, band 1, Channel 2 (1558.98nm)(ECI) ", Add and drop wavelength 1557.36nm. ECI TELECOM P/N: BP1A36AA-04-E. "1 channel DWDM OADM, band 1, Channel 4 (1557.36nm)(ECI) ", Add and drop wavelength 1546.12nm. ECI TELECOM P/N: BP1A36AA-16-E. "One channel DWDM OADM, Channel 16", Add and drop wavelength 1546.92nm. ECI TELECOM P/N: BP1A36AA-15-E. "One channel DWDM OADM, Channel 15", Add and drop wavelength 1558.17nm. ECI TELECOM P/N: BP1A36AA-03-E. "One channel DWDM OADM, Band 1, Channel 3 (1558.17nm) (ECI)", Add and drop wavelength 1554.94nm. ECI TELECOM P/N: BP1A36AA-07-E. "One channel DWDM OADM, Band 7, Channel 7 (1554.94nm) (ECI)"
  • Manufacturers
    • Manufacturer
      ECI TELECOM
