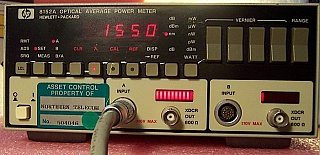

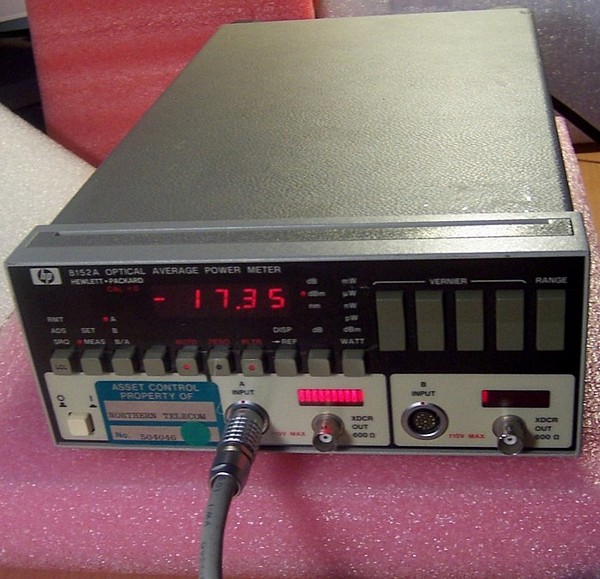

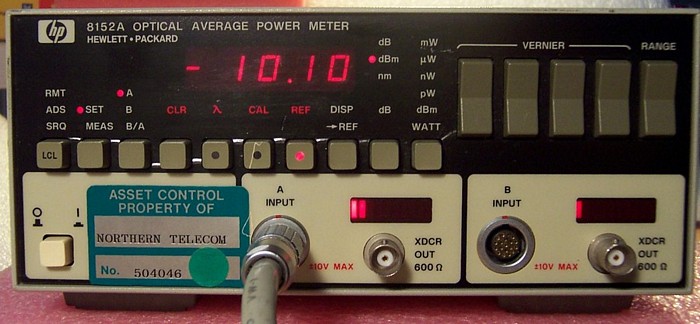

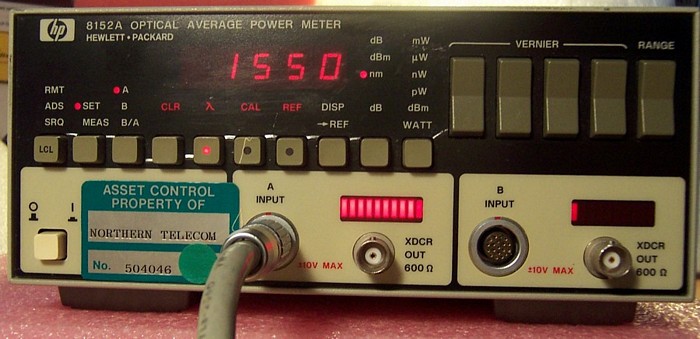

HP/Agilent 8152A optical average power meter.
Next image
Zoom image

HP/Agilent 8152A optical average power meter.


Not rated yet

When using HP 81521B optical head(not included in this sale), HP 8152A optical average power meter is almost equivalent to new model: combination of  HP 8153A Lightwave multimeter mainframe and 2 HP 81533A interface modules. Offers almost same major specifications as new model, except display resolution of optical power is only 0.01dB. Much lower cost than new model. See specification at 1st and last pdf links below. See user guide and GPIB commands at 3rd pdf link below, GPIB commands are also shown at H-section of 2nd pdf link below.

General description:
  The HP 8152A optical average power meter and its optical heads provide the accuracy and versatility for absolute and relative power measurements in a lightwave test environment.
   Individually calibrated optical heads ensure highly precise measurement results over the entire wavelength range from 450 to 1700 nm. After entering the operating wavelength, the appropriate sensitivity correction factor will automatically be taken into account to ensure the correct measurement value is displayed.
    All functions can be set manually via front panel controls, or programmed via HP-IB for complete remote control.
• Two optical inputs
• Optical heads individually calibrated from 850 to 1700 nm
• Mutltimode and single-mode
• 3.7% accuracy
• Resolution: 4½ digits, 0.01 dB, 10 pW best case (with 81521B optical head)
• Traceable calibration accuracy: ±5%
• HP-IB functions: SH1, AH1, T6, L4, SR1, RL1, PP0, DC1, DT1, C0

In stock (Only 1 left in stock)
  • US$570.00
Qty:
Add a different product to compare
    CONDITION:

    Good cosmetic condition. Tested good at -10dBm 1550nm input, got same optical power result as HP 8153A + HP 81533A. GPIB command is verified working.


  • DIM Weight
    6.5000 kg
  • Store Part No.
    OTI-OPM-L-030C
  • Manufacturers
    • Manufacturer
      Hewlett Packard
