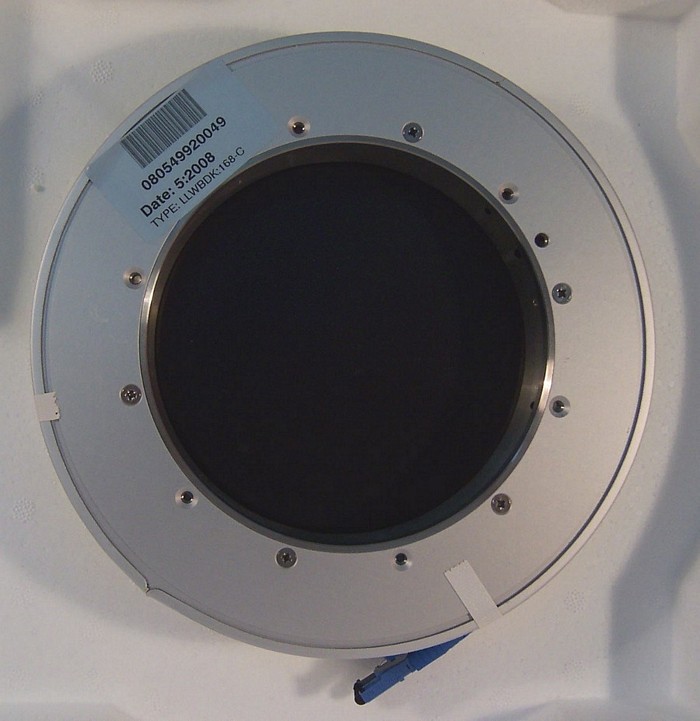

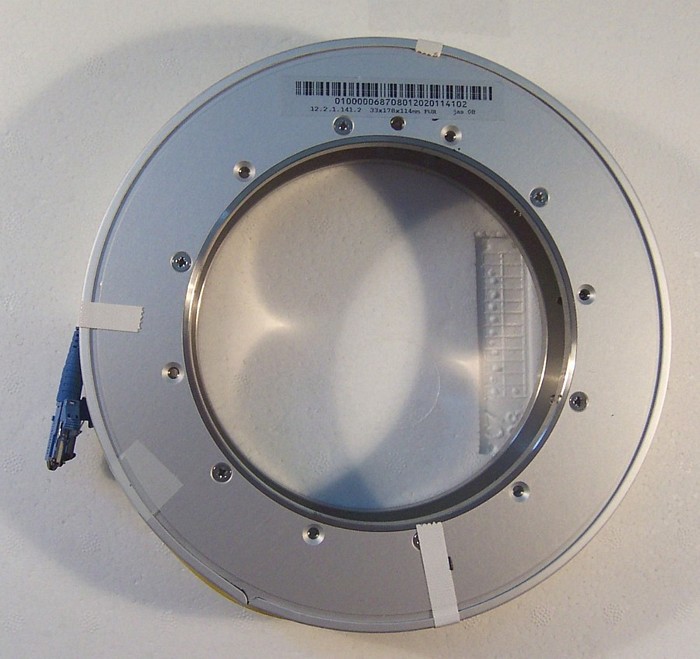

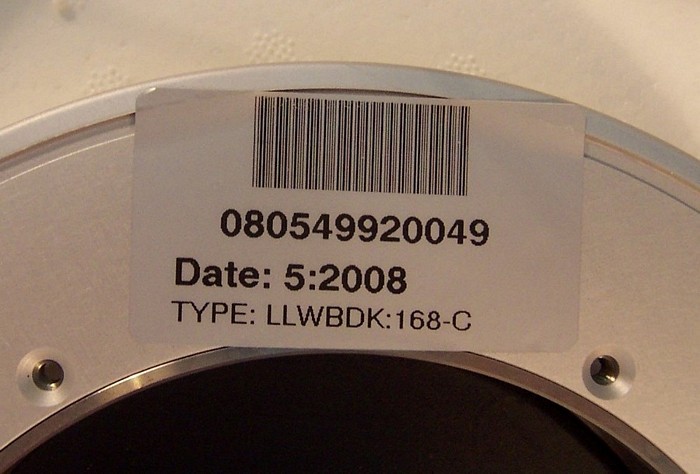

OFS ``low-loss-wide-band`` DCM for 1.55um C-band, dispersion: -168 ps/nm, 100% compensation. OFS/LucentType: LLWBDK:168-C. with 2 LC/PC connectors.
Next image
Zoom image

OFS ``low-loss-wide-band`` DCM for 1.55um C-band, dispersion: -168 ps/nm, 100% compensation. OFS/LucentType: LLWBDK:168-C. with 2 LC/PC connectors.


Not rated yet

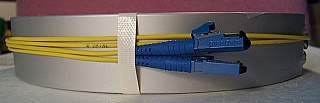

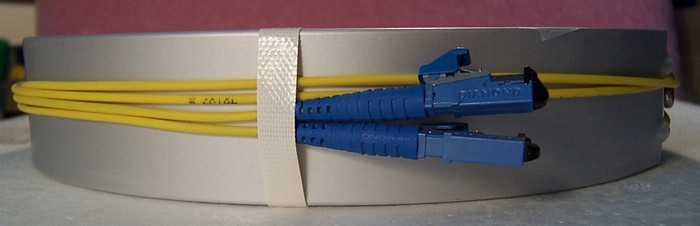

Dispersion compensation for 10km standard SM fiber. The dispersion compensation ratio is 100% with slope compensation, according to the datasheet in the 1st pdf link below. Dispersion around 1550nm: -168 ps/nm. With 1.7mm cables at two fiber ends, "9/125" is marked on cable, so the fiber connectors are regular SMF type. With 2 LC connectors (as shown at manufacture test data).
In stock (Only 2 left in stock)
  • US$340.00
Qty:
Add a different product to compare
    CONDITION:

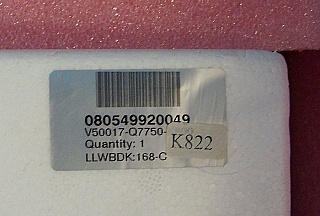

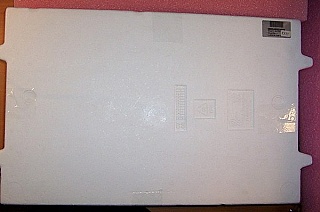

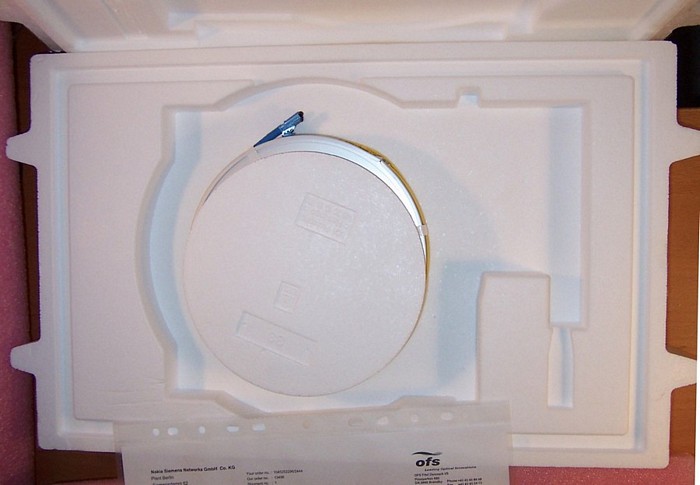

    In original product pack. We believe they are new, though the packages were opened before. With manufacture test data, see last 3 pdf links above. If you like to reduce shipping cost, tell us, we can remove original packing.

  • DIM Weight
    4.5000 kg
  • Store Part No.
    FSC-DCM-014H
  • Manufacturers
    • Manufacturer
      OFS
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
