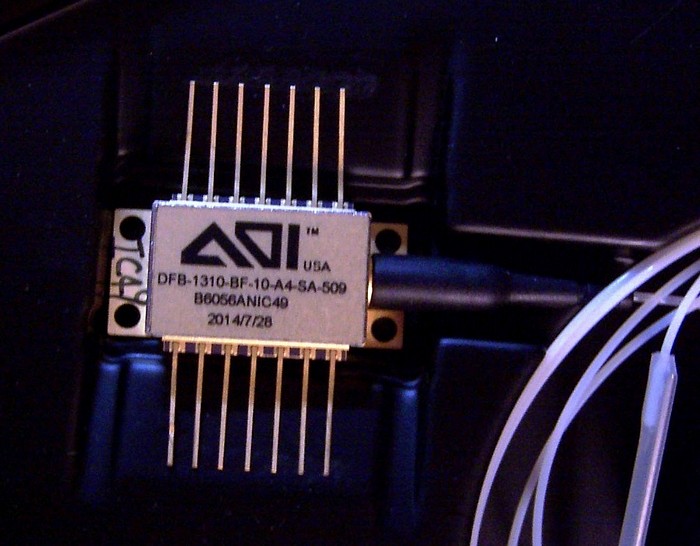

$170 each if buy 40pc.  Min order = 2pc. 1310nm DFB analog laser module. 14-pin butterfly. AOI P/N: DFB-1310-BF-10-A4-SA-509. With SC/APC fiber connector.
Next image
Zoom image

$170 each if buy 40pc. Min order = 2pc. 1310nm DFB analog laser module. 14-pin butterfly. AOI P/N: DFB-1310-BF-10-A4-SA-509. With SC/APC fiber connector.


Not rated yet

Description
• The DFB-1310-BF-xx-Ax-xx DFB laser modules are designed for forward-path CATV applications. The modules are designed to incorporate high output power while maintaining high linearity. The devices feature standard pin assignments (compatible with OC-48).
•  The modules are excellent sources for use in CATV systems incorporating both PAL-D, with 60 channel loading, and NTSC, with up to 77 channels. The combination of high performance and very reasonable price make these modules the most cost effective CATV transmitter solutions in the industry.

Features
•  Standard OC-48 pin compatibility
•  Negative bias
•  Optimized for PAL-D and NTSC channel counts
•  Output power up to 22 mW
•  Meets GR 468 reliability specifications

Applications
•  CATV forward-path
•  1310-nm broadcast and point-to-point applications

In stock (110 items available)
  • US$235.00
Buy more for less:
2-3 items US$235.00 / each
4-9 items US$220.00 / each save 6%
10-19 items US$195.00 / each save 17%
20-39 items US$182.50 / each save 22%
40-79 items US$170.00 / each save 28%
80 or more items US$160.00 / each save 32%
Minimum purchase quantity: 2 units
Qty:
Add a different product to compare
  • DIM Weight
    0.7500 kg
  • Store Part No.
    OSC-LDS-A1300-110D
CONDITION:

new in original sealed product pack(we opened 3 samples to check inside), with actual test data (see last 3 pdf links and last photo). Sample tested well at our lab, see our test data at 1st 2 photos.

  • Manufacturer
    Sumitomo
  • Manufacture Year(xxxx)+Month(xx)
    201407
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
