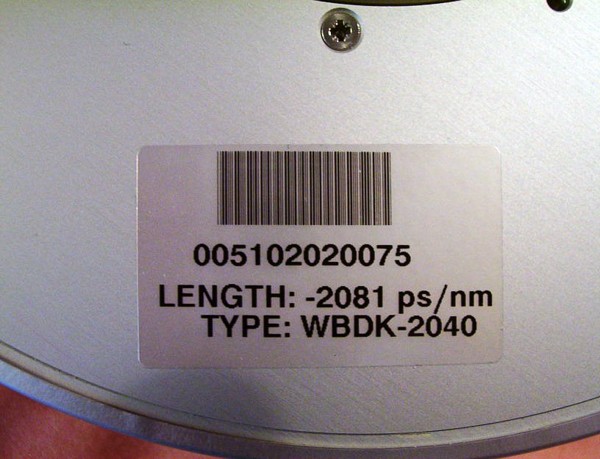

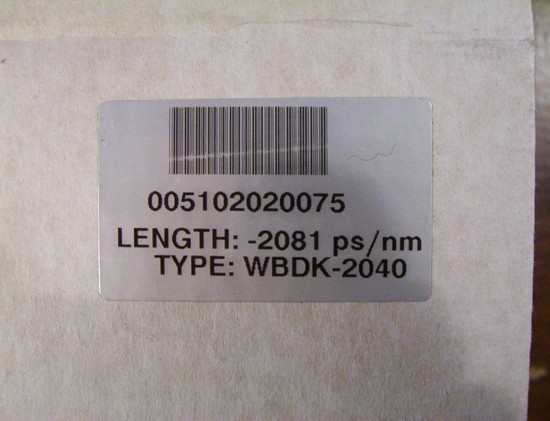

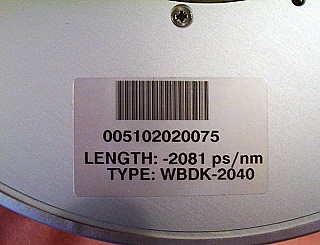

Lucent(OFS) DCM for about 120km standard SMF dispersion compensation, Lucent(OFS) model: WBDK:2040. about -2040 ps/nm, 100% compensation.
Next image
Zoom image

Lucent(OFS) DCM for about 120km standard SMF dispersion compensation, Lucent(OFS) model: WBDK:2040. about -2040 ps/nm, 100% compensation.


Not rated yet

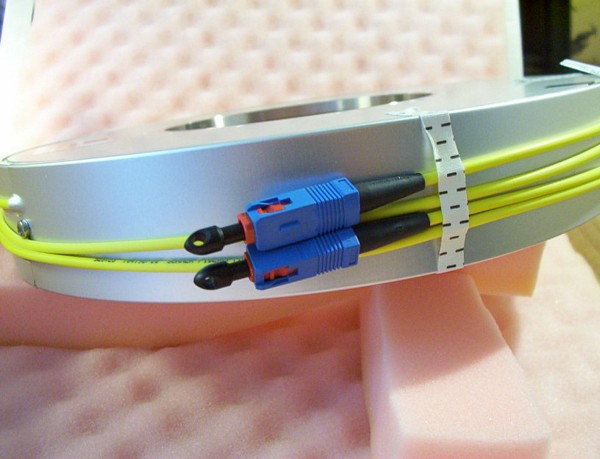

Model: WBDK:2040. With SC/PC connectors. We believe the dispersion compensation ratio is 100%, according the the datasheet in the pdf link below. Made in Dec. 2000.

We tested two samples, loss is 11.6dB, 12.6dB at 1.55um, including one SC/PC connector loss.

Net weight without protection package: 2.27 kg. Gross weight with protection package: 2.5kg.

Fiber length is tested as 23.824km by OTDR approximately at our lab, assuming effective refractive index is same as LEAF fiber (1.4690 at 1.55um).

In stock (Only 2 left in stock)
  • US$1503.00
Qty:
Add a different product to compare
    CONDITION:

    New in original product box.


  • DIM Weight
    2.7000 kg
  • Store Part No.
    FSC-DCM-001D
  • Manufacturers
    • Manufacturer
      Lucent
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
