225pc 1x2 100GHz L-band mux/demux thin-film filter. Various available wavelengths. JDS P/N: 10127480-xxx,
Next image
Zoom image

225pc 1x2 100GHz L-band mux/demux thin-film filter. Various available wavelengths. JDS P/N: 10127480-xxx,


Not rated yet

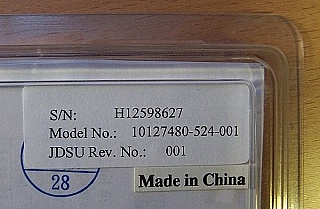

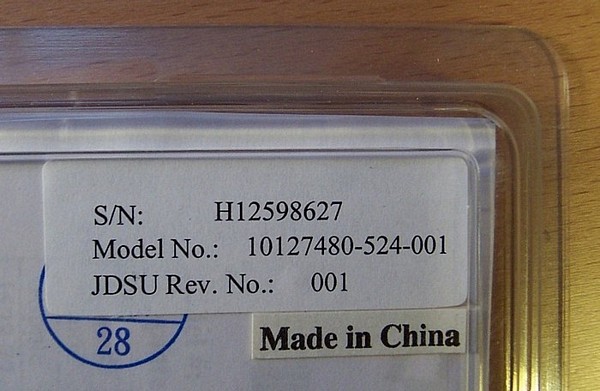

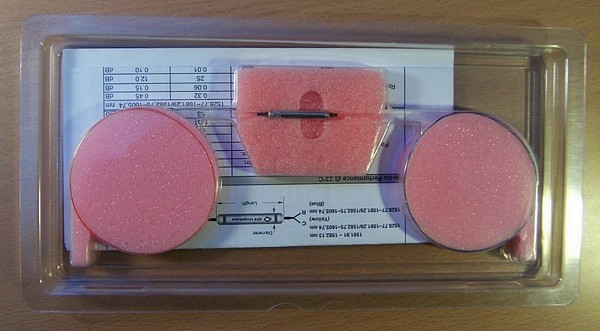

Pass-band at 0.4dB : min 0.22nm. IL : max 1.1dB. ITU 100GHz spacing DWDM multiplexer/demultiplexer. 1X2 thin-film type optical filter. With SMF-28 250um-coating bare fibers. Photos bare from a sample of what we have.

See manufacture test data from our samples at last five pdf links below. See ITU grid at the 2nd pdf link below.

Wavelengths:
P/N: 10127480-464-001, 1569.59nm
P/N: 10127480-468-001, 1570.42nm
P/N: 10127480-480-001, 1572.89nm
P/N: 10127480-484-001, 1573.71nm
P/N: 10127480-492-001, 1575.37nm
P/N: 10127480-508-001, 1578.69nm
P/N: 10127480-512-001, 1579.52nm
P/N: 10127480-516-001, 1580.35nm
P/N: 10127480-520-001, 1581.18nm
P/N: 10127480-524-001, 1582.02nm
P/N: 10127480-550-001, 1587.46nm
P/N: 10127480-564-001, 1590.41nm
P/N: 10127480-568-001, 1591.26nm
P/N: 10127480-576-001, 1592.95nm
P/N: 10127480-580-001, 1593.79nm
P/N: 10127480-592-001, 1596.34nm
P/N: 10127480-616-001, 1601.46nm

Store Part No. Choose center wavelength Qty Price Buy
FFC-TFF-L-150CA P/N: 10127480-464-001, 1569.59nm 10 US$30.00 + -
FFC-TFF-L-150C0 P/N: 10127480-468-001, 1570.42nm 3 US$33.00 + -
FFC-TFF-L-150C1 P/N: 10127480-480-001, 1572.89nm 4 US$33.00 + -
FFC-TFF-L-150C2 P/N: 10127480-484-001, 1573.71nm 14 US$30.00 + -
FFC-TFF-L-150C3 P/N: 10127480-492-001, 1575.37nm 17 US$29.00 + -
FFC-TFF-L-150C4 P/N: 10127480-508-001, 1578.69nm 23 US$27.00 + -
FFC-TFF-L-150C5 P/N: 10127480-512-001, 1579.52nm 6 US$33.00 + -
FFC-TFF-L-150C6 P/N: 10127480-516-001, 1580.35nm 7 US$33.00 + -
FFC-TFF-L-150C7 P/N: 10127480-520-001, 1581.18nm 7 US$33.00 + -
FFC-TFF-L-150C8 P/N: 10127480-524-001, 1582.02nm 25 US$27.00 + -
FFC-TFF-L-150C9 P/N: 10127480-550-001, 1587.46nm 20 US$29.00 + -
FFC-TFF-L-150C11 P/N: 10127480-564-001, 1590.41nm 11 US$33.00 + -
FFC-TFF-L-150C12 P/N: 10127480-568-001, 1591.26nm 15 US$31.00 + -
FFC-TFF-L-150C13 P/N: 10127480-576-001, 1592.95nm 2 US$33.00 + -
FFC-TFF-L-150C14 P/N: 10127480-580-001, 1593.79nm 15 US$31.00 + -
FFC-TFF-L-150C15 P/N: 10127480-592-001, 1596.34nm 15 US$31.00 + -
FFC-TFF-L-150C16 P/N: 10127480-616-001, 1601.46nm 5 US$33.00 + -
Add a different product to compare
    CONDITION:

    new in original product pack, with individual manufacture test data sheet


  • DIM Weight
    0.2500 kg
  • Store Part No.
    FFC-TFF-L-150CA
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose center wavelength
    P/N: 10127480-616-001, 1601.46nm, P/N: 10127480-592-001, 1596.34nm, P/N: 10127480-580-001, 1593.79nm, P/N: 10127480-576-001, 1592.95nm, P/N: 10127480-568-001, 1591.26nm, P/N: 10127480-564-001, 1590.41nm, P/N: 10127480-554-001, 1588.30nm, P/N: 10127480-550-001, 1587.46nm, P/N: 10127480-524-001, 1582.02nm, P/N: 10127480-520-001, 1581.18nm, P/N: 10127480-516-001, 1580.35nm, P/N: 10127480-512-001, 1579.52nm, P/N: 10127480-508-001, 1578.69nm, P/N: 10127480-492-001, 1575.37nm, P/N: 10127480-484-001, 1573.71nm, P/N: 10127480-480-001, 1572.89nm, P/N: 10127480-468-001, 1570.42nm, P/N: 10127480-464-001, 1569.59nm
  • Manufacturers
    • Manufacturer
      FibX (JDS)
